Three-level protection for 10 signal wires

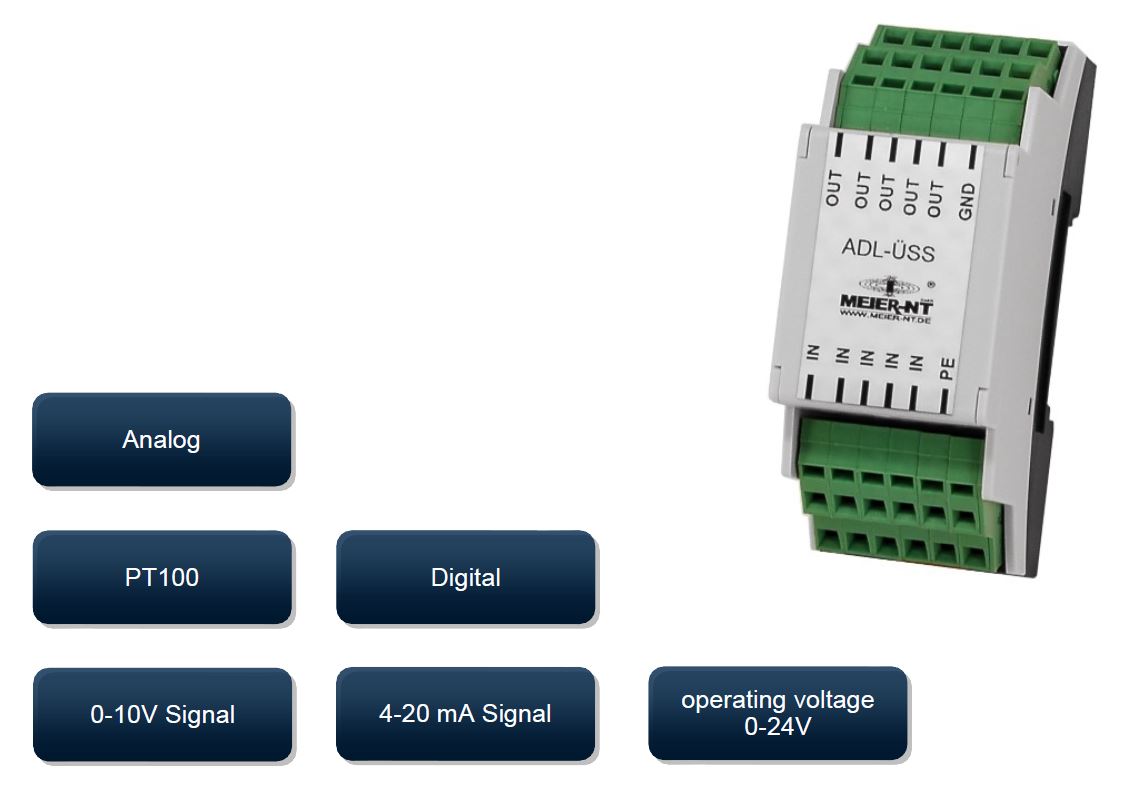

The ADL-ÜSS protects its sensitive measuring technology from damage.
It has no influence on the measuring signal.
It can protect up to 10 signal wires.
Since there are no series resistors are suitable
it is for all analog signals.
Also for the resistance measurement as with
PT100, the module is ideally suited.
Advantages and functions
With common reference potential and separate GND / PE connection.
Technical specifications
| Nominal voltage: | 24V DC |
|---|---|
| Highest continuous voltage: | < 25V DC |
| Current Rating: | 1A |
| Mode of operation: | Line-Earth Ground |
| Operating temperature range: | -25°C ... 60°C |
| Operating humidity range: | 0 ... 95 %rF not condensing |
| protection: | IP 20 according to DIN 40 050-9/5.93 |
| Case: | Polycarbonat |
| Dimensions (L/W/H): | 90x50x36 mm |
| Mounting: | Mounting on DIN-EN mounting rail |
